Lockout tagouts
Aluminum Lockouts
Protect against injuries, equipment damage and work spoilage.
OG-80
Alloy Aluminum
Hasp Size 1/4
Hasp Length or Dia. 1 Diameter
Body Height 2
Body Width 1-1/2
O/A Height 4-3/8
Capacity 1/4"
Locks 6
Hole Size 7/16 D
OG-80C
Alloy Aluminum
Hasp Size 1/4
Hasp Length or Dia. 1 Diameter
Body Height 2
Body Width 1-1/2
O/A Height 4-3/8
Capacity 1/4"
Locks 6
Hole Size 7/16 D
OG-80-2
Alloy Aluminum
Hasp Size 1/4
Hasp Length or Dia. 1-1/2 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-7/8
Capacity 1/4"
Locks 6
Hole Size 7/16 D.
OG-80-2C
Alloy Aluminum
Hasp Size 1/4
Hasp Length or Dia. 1-1/2 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-7/8
Capacity 1/4"
Locks 6
Hole Size 7/16 D.
OG-85
Alloy Aluminum
Hasp Size 1/4
Hasp Length or Dia. 1 x 1
Body Height 2
Body Width 2-1/8
O/A Height 3-1/4
Capacity 1/4"
Locks 6
Hole Size 3/8 D.
OG-85C
Alloy Aluminum
Hasp Size 1/4
Hasp Length or Dia. 1 x 1
Body Height 2
Body Width 2-1/8
O/A Height 3-1/4
Capacity 1/4"
Locks 6
Hole Size 3/8 D.
OG-76
Alloy Aluminum
Hasp Size 1/4 - 1/4
Hasp Length or Dia. 1 D. -1-1/2 Diam.
Body Height 3
Body Width 1-1/4
O/A Height 6
Capacity 1/4"
Locks 8
Hole Size 3/8 D.
Steel Lockouts
Heavy-Duty Steel Lockouts tamper-resistant design eliminates vandalism and accidental breakage.
OG-70
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1-1/4 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-9/16
Capacity 1/4"
Locks 6
Hole Size 5/16 D
OG-70C
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1-1/4 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-9/16
Capacity 1/4"
Locks 6
Hole Size 5/16 D
OG-70SS
Alloy Stainless Steel
Hasp Size 1/4
Hasp Length or Dia. 1-1/4 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-9/16
Capacity 1/4"
Locks 6
Hole Size 5/16 D.
OG-70SSC
Alloy Stainless Steel
Hasp Size 1/4
Hasp Length or Dia. 1-1/4 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-9/16
Capacity 1/4"
Locks 6
Hole Size 5/16 D.
OG-86
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-7/16
Capacity 1/4"
Locks 6
Hole Size 7/16 D.
OG-86C
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-7/16
Capacity 1/4"
Locks 6
Hole Size 7/16 D.
OG-86SS
Alloy Stainless Steel
Hasp Size 1/4
Hasp Length or Dia. 1 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-7/16
Capacity 1/4"
Locks 6
Hole Size 7/16 D.
OG-86SSC
Alloy Stainless Steel
Hasp Size 1/4
Hasp Length or Dia. 1 Diam.
Body Height 2
Body Width 1-1/2
O/A Height 4-7/16
Capacity 1/4"
Locks 6
Hole Size 7/16 D.
OG-87
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 x 1
Body Height 2
Body Width 2-1/4
O/A Height 3-1/4
Capacity 1/4"
Locks 6
Hole Size 7/16 x1-5/8
OG-87C
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 x 1
Body Height 2
Body Width 2-1/4
O/A Height 3-1/4
Capacity 1/4"
Locks 6
Hole Size 7/16 x1-5/8
OG-87-1
Alloy Steel
Hasp Size 1/8
Hasp Length or Dia. 1 x 1
Body Height 2
Body Width 2-1/4
O/A Height 3-1/4
Capacity 1/4"
Locks 6
Hole Size 7/16 x1-5/8
OG-87-1C
Alloy Steel
Hasp Size 1/8
Hasp Length or Dia. 1 x 1
Body Height 2
Body Width 2-1/4
O/A Height 3-1/4
Capacity 1/4"
Locks 6
Hole Size 7/16 x1-5/8
OG-87-2
Alloy Steel
Hasp Size 1/8
Hasp Length or Dia. 1 x 3
Body Height 3-1/2
Body Width 2-1/4
O/A Height 6-5/8
Capacity 1/4"
Locks 12
Hole Size 7/16 x 3
OG-87-2C
Alloy Steel
Hasp Size 1/8
Hasp Length or Dia. 1 x 3
Body Height 3-1/2
Body Width 2-1/4
O/A Height 6-5/8
Capacity 1/4"
Locks 12
Hole Size 7/16 x 3
OG-87-3
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 x 3
Body Height 3-1/2
Body Width 2-1/4
O/A Height 6-3/4
Capacity 1/4"
Locks 12
Hole Size 7/16 x 3
OG-87-3C
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 x 3
Body Height 3-1/2
Body Width 2-1/4
O/A Height 6-3/4
Capacity 1/4"
Locks 12
Hole Size 7/16 x 3
OG-87-3-6
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 x 3
Body Height 3-1/2
Body Width 2-1/4
O/A Height 6-3/4
Capacity 1/4"
Locks 6
Hole Size N/A
OG-87-3-6C
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 x 3
Body Height 3-1/2
Body Width 2-1/4
O/A Height 6-3/4
Capacity 1/4"
Locks 6
Hole Size N/A
OG-87-3-S6H
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 x 1-1/4
Body Height 3-1/2
Body Width 2-5/16
O/A Height 5
Capacity 1/4"
Locks 6
Hole Size N/A
OG-87-3-S6HC
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1 x 1-1/4
Body Height 3-1/2
Body Width 2-5/16
O/A Height 5
Capacity 1/4"
Locks 6
Hole Size N/A
OG-87-5
Alloy Steel
Hasp Size 3/8
Hasp Length or Dia. 1 x 1-1/2
Body Height 3-1/2
Body Width 2-7/16
O/A Height 5-3/8
Capacity 1/4"
Locks 12
Hole Size 7/16 x 3
OG-87-6
Alloy Steel
Hasp Size 1/4
Hasp Length or Dia. 1-1/2 x4-3/4
Body Height 2
Body Width 3
O/A Height 7
Capacity 1/4"
Locks 7
Hole Size 7/16 x1-5/8
Lockout Tags
All six tag designs have a common back, as shown. Tags are made of durable styrene plastic. Our lockout tags are designed to be re-usable and may be written on with permanent or erasable marker.
OG-80001-6
All six tag designs have a common back, as shown. Tags are made of durable styrene plastic. Our lockout tags are designed to be re-usable and may be written on with permanent or erasable marker.

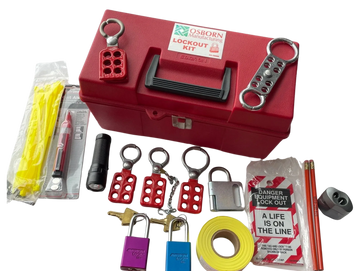

Lockout Kits
Our Deluxe and Economy Lockout Kits contain a variety of our best-selling products and supplemental equipment all in one convenient toolbox.
Deluxe Lockout Kit OG-3800D
1 Flashlight
1 OG-76 Lockout
1 OG-87 Lockout
1 Circuit Tester
1 OG-80 Lockout
1 OG-87-1 Lockout
1 Pkg. Zip Ties
1 OG-80C Lockout
1 OG-87-3 Lockout
1 Roll Safety Tape
1 OG-80-2 Lockout
1 OG-87-3-6 Lockout
2 Pkg. (6 ea) Lockout Tags
1 OG-80 2C Lockout
1 OG-07-3-S6H Lockout
4 Padlocks with Keys
1 OG-85 Lockout
4 Pencils w/Sharpener
1 OG-70 Lockout
1 OG-86 Lockout
1 15-1/2” x 7-1/2” x 8” Case
Economy Lockout Kit OG-3800E
1 Flashlight
2 Padlocks with Keys
1 OG-86 Lockout
1 Circuit Tester
1 OG-76 Lockout
1 OG-87 Lockout
1 Pkg. Zip Ties
1 OG-80 Lockout
2 Pencils w/Sharpener
1 Roll Safety Tape
1 OG-80C Lockout
1 12" x 6" x 6" Case
1 Pkg. (6 ea) Lockout Tags
1 OG-80-2 Lockout
